HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS


HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS


Tools needed to complete this task:
  • Pot of warm water (just under boiling point)
  • Scissors or garden shears
  • Tape measure
  • Vice-grips
  • Gloves

E-CLIP PROCESS: Attach strap to one side of the frame

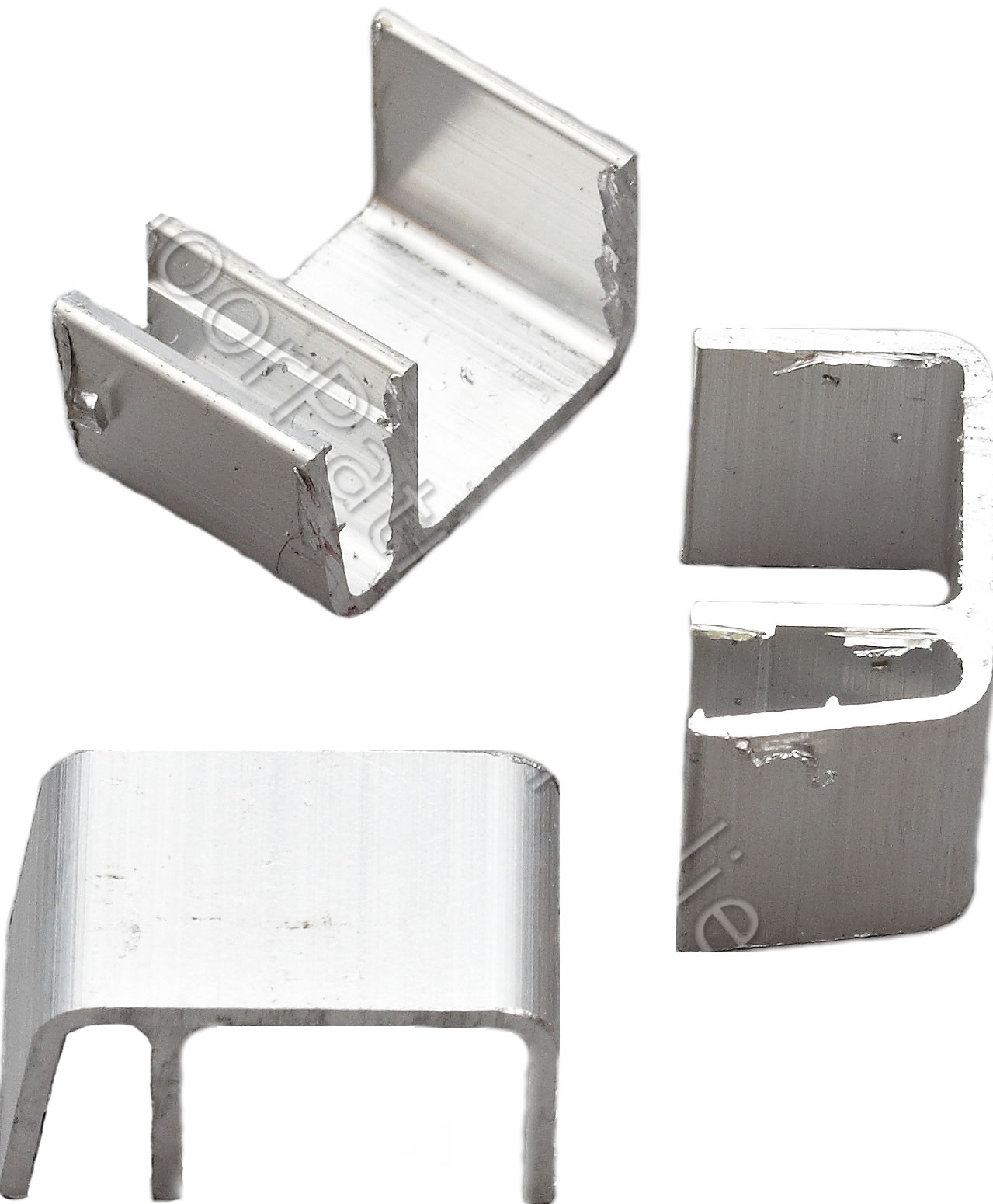

5/8" aluminum E-clips are used for this installation. The E-clips can be purchased on our website. The part number for the E-clips is # 30-800 and can be found here.

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step one: Remove old straps

Using scissors or garden shears, cut off all old straps as well as fasteners. Clean the piece well. If the furniture is in need of structural repair or painting, this is the time to do it. See Pic. 1

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step two: Measure strap length

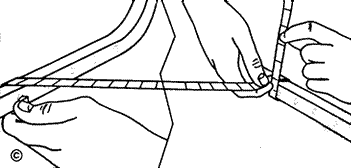

Use a tape measure and find the exact measurement from inside top of frame to inside top of the frame. See Pic. 2

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

NOTE: If you are buying pre-cut straps; jump to Step six.

Step three: Cut one strap

Cut one strap off your roll of vinyl (Do not cut all the straps at once as you may want to adjust the strap length after seeing how the first strap fits around the frame). See Pic. 3

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step four: Cut corners

Using the garden shears, trim off the corners on each end of the vinyl straps. See Pic. 4

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step five: Insert E-clip

Insert strap end fully into jaws of E-clip. Using vice-grips, apply heavy clamp pressure to secure strap in jaws of E-clip. A good method is to clamp halfway onto clip from one side, then repeat on the other side. Two bites seem to secure strap better than one single effort. See Pic. 5

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step six: Put straps in warm water

Place straps inside the pot and wait 5 minutes before installing. We recommend wearing gloves to protect your hands; and when you are ready to start, use tongs (optional) to pick up each strap and install. Once the strap is out of the water, you have to install it right away; otherwise, it will cool down and harden. See Pic. 6

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step seven: Slide E-clip

(Back view) Slide E-clip onto frame from front of piece. See Pic. 7

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step eight: View of clip attached to frame

(Front view) Clip attached to frame. See Pic. 8

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step nine: Wrap strap

(Front view) Wrap strap tightly around itself covering the clip head as you bring strap around the outside of the frame. See Pic. 9

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step ten: Stretch strap

(Front view) Stretch strap firmly across frame at an angle about two or three inches below the straps proper placement on the frame. Stretch until you have pulled about four to five inches past the frame. See Pic. 10

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step eleven: Wrap strap opposite side

(Front view) Using heavy thumb pressure of one hand hold strap in position and begin wrapping strap around frame with your other hand. Slide clip onto frame. See Pic. 11

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step twelve: Adjust strap

Adjust strap in place to bring top wrap over bottom wrap. See Pic. 12

HOW TO INSTALL ALUMINUM STAINLESS STEEL CLIP STRAPS

Step thirteen: View of installed clip

Back view of finished product. See Pic. 13
