how to install double wrap chair straps tutorial


HOW TO INSTALL DOUBLE WRAP STRAP

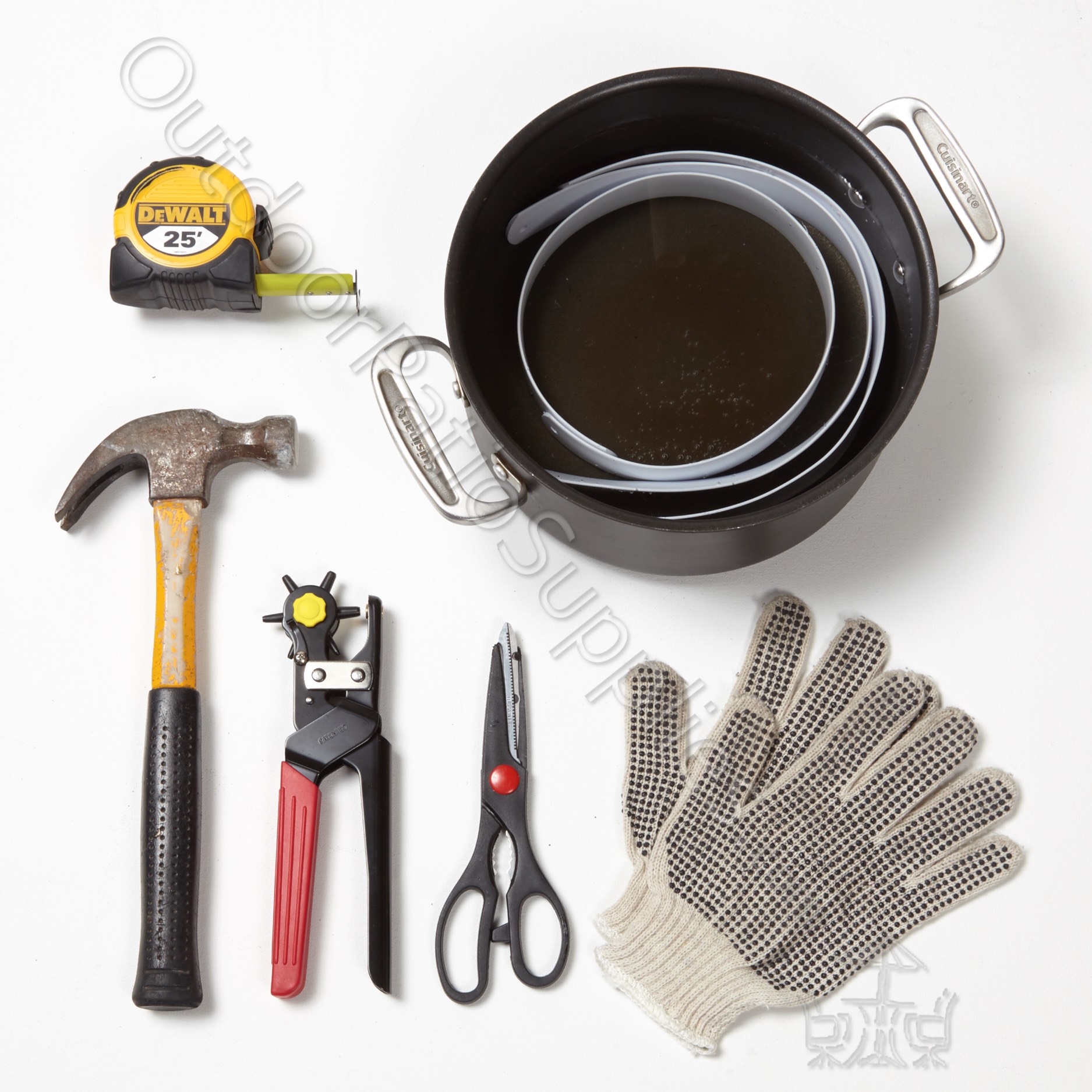

Tools needed to complete this task: See Pic.1
  • Pot of warm water (just under boiling point)
  • Scissors
  • Tape measure
  • Hole puncher (if you will cut your own strap)
  • Hammer or rubber mallet (optional)
  • Gloves
how to install single wrap strap

Place the straps inside the pot and wait for 5 minutes before installing. We recommend wearing gloves to protect your hands, and when you are ready to start, use tongs (optional) to grab and install one strap at a time. Once you remove the strap from the water, you have to install it right away, otherwise it will cool down and harden.


Step one: Attach strap to one side of the frame

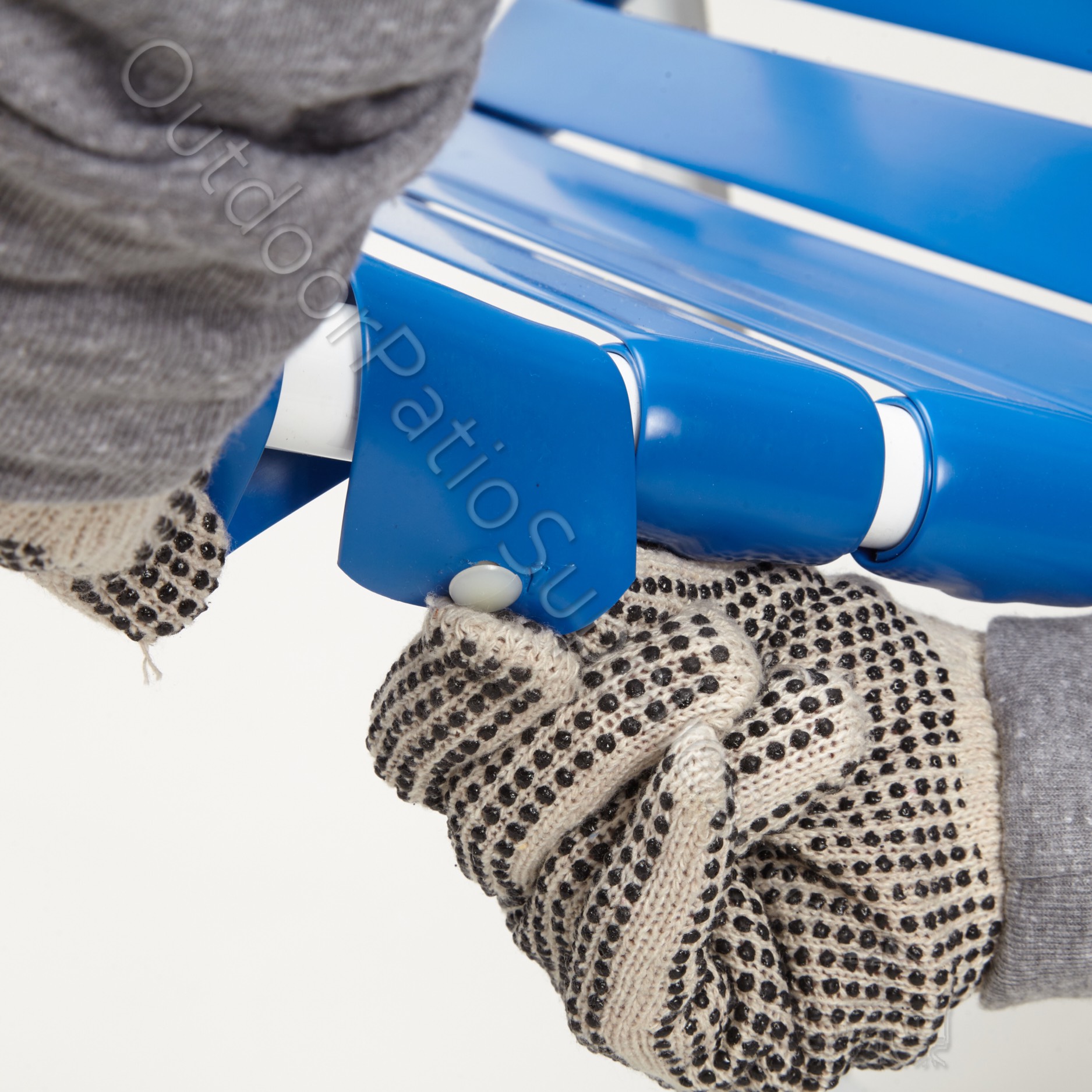

Push the rivet into both strap. Insert the rivet into the hole of one side of the chair frame and if necessary use a hammer to tap it in. As shown in Pic. 2

how to install double wrap strap

Step two: Wrap strap around the frame

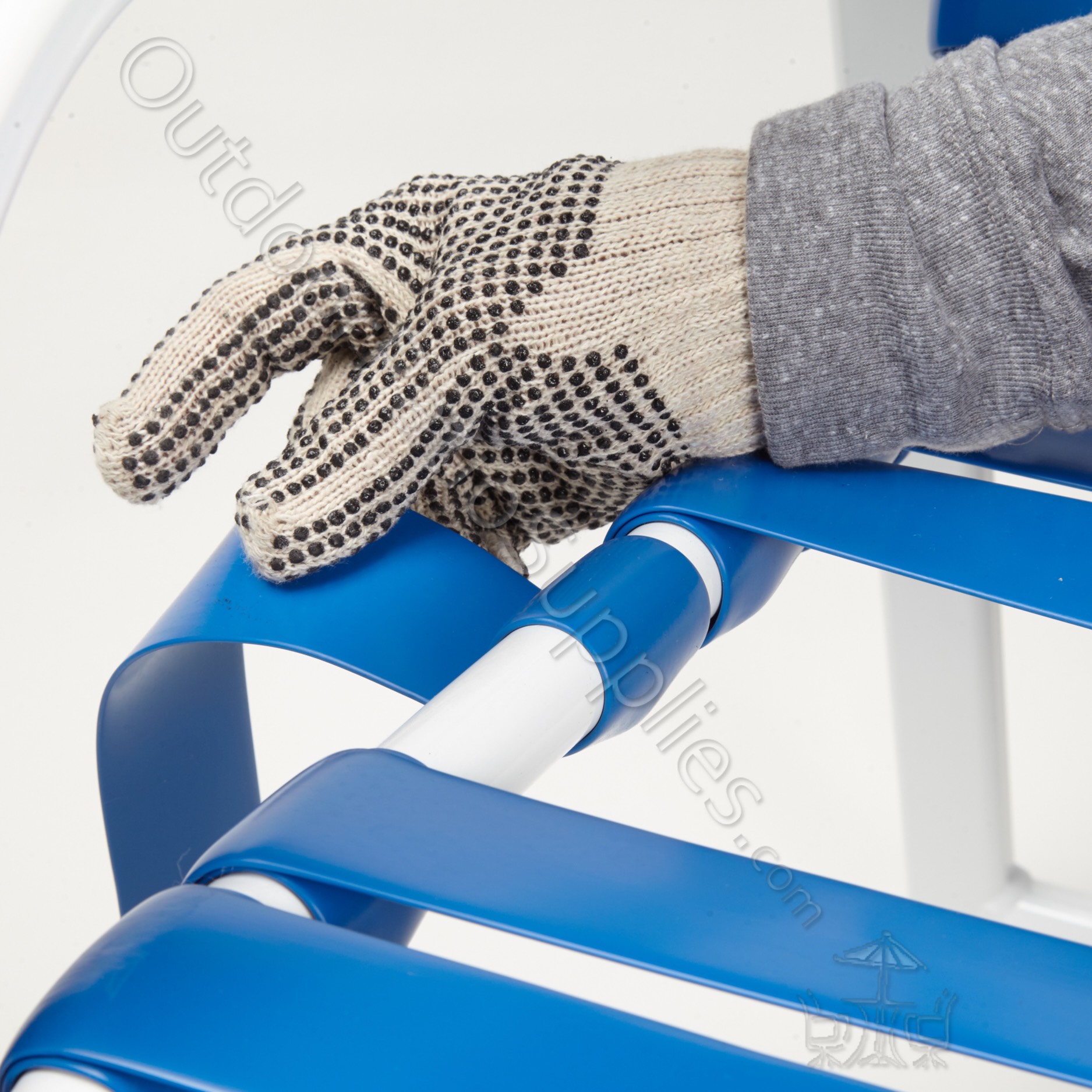

Wrap the strap around the frame twice. As shown in Pic. 3

how to install double wrap strap

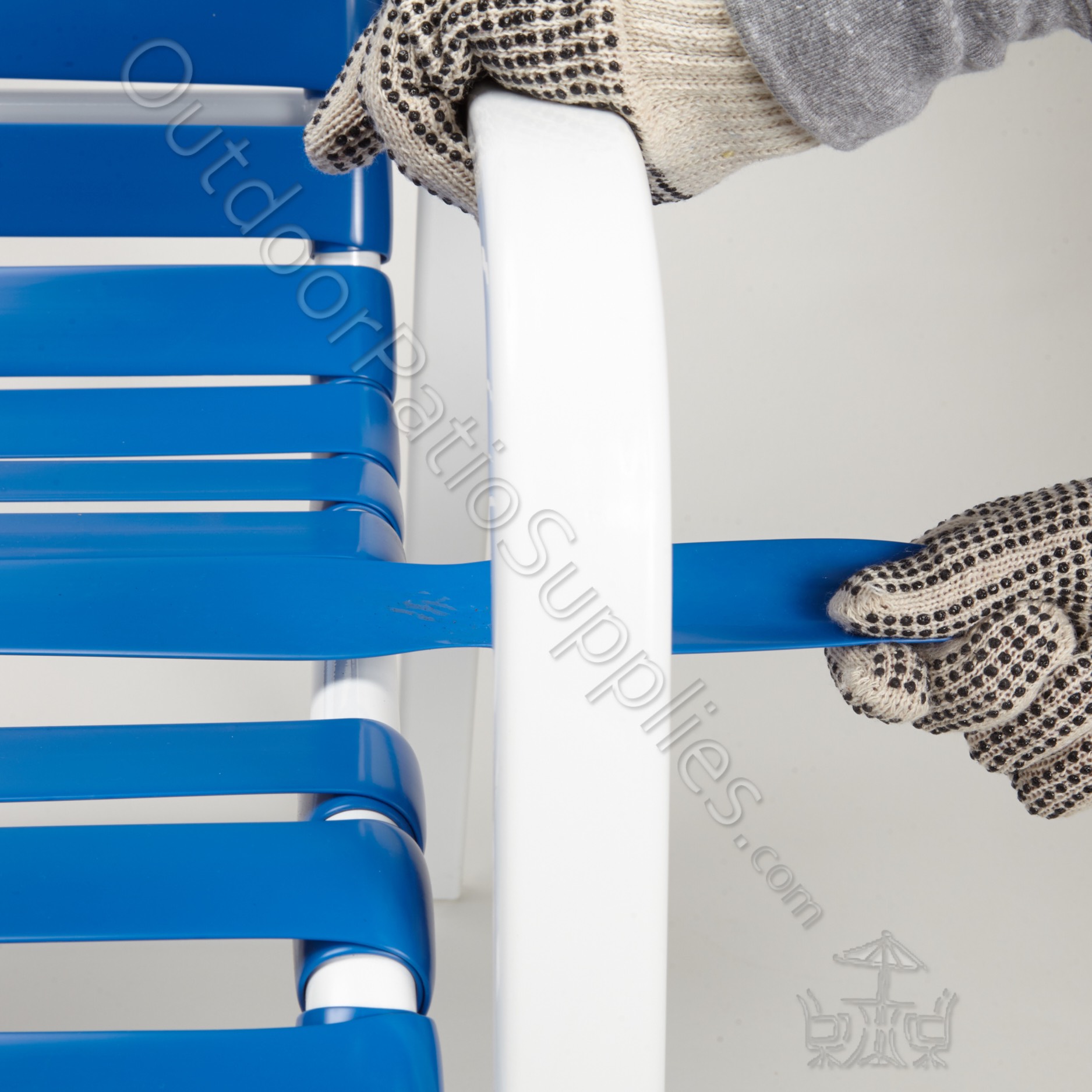

Step three: Pull strap

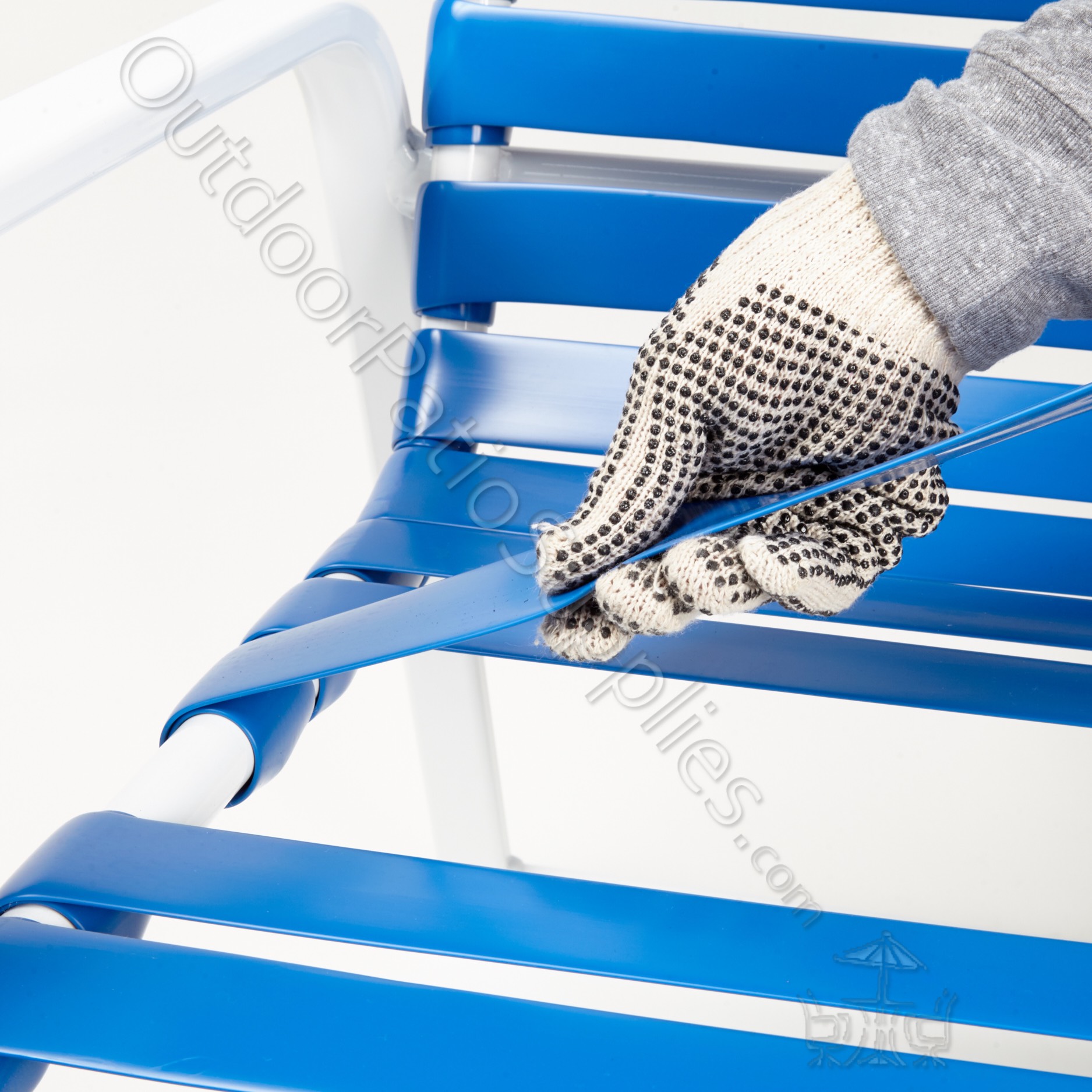

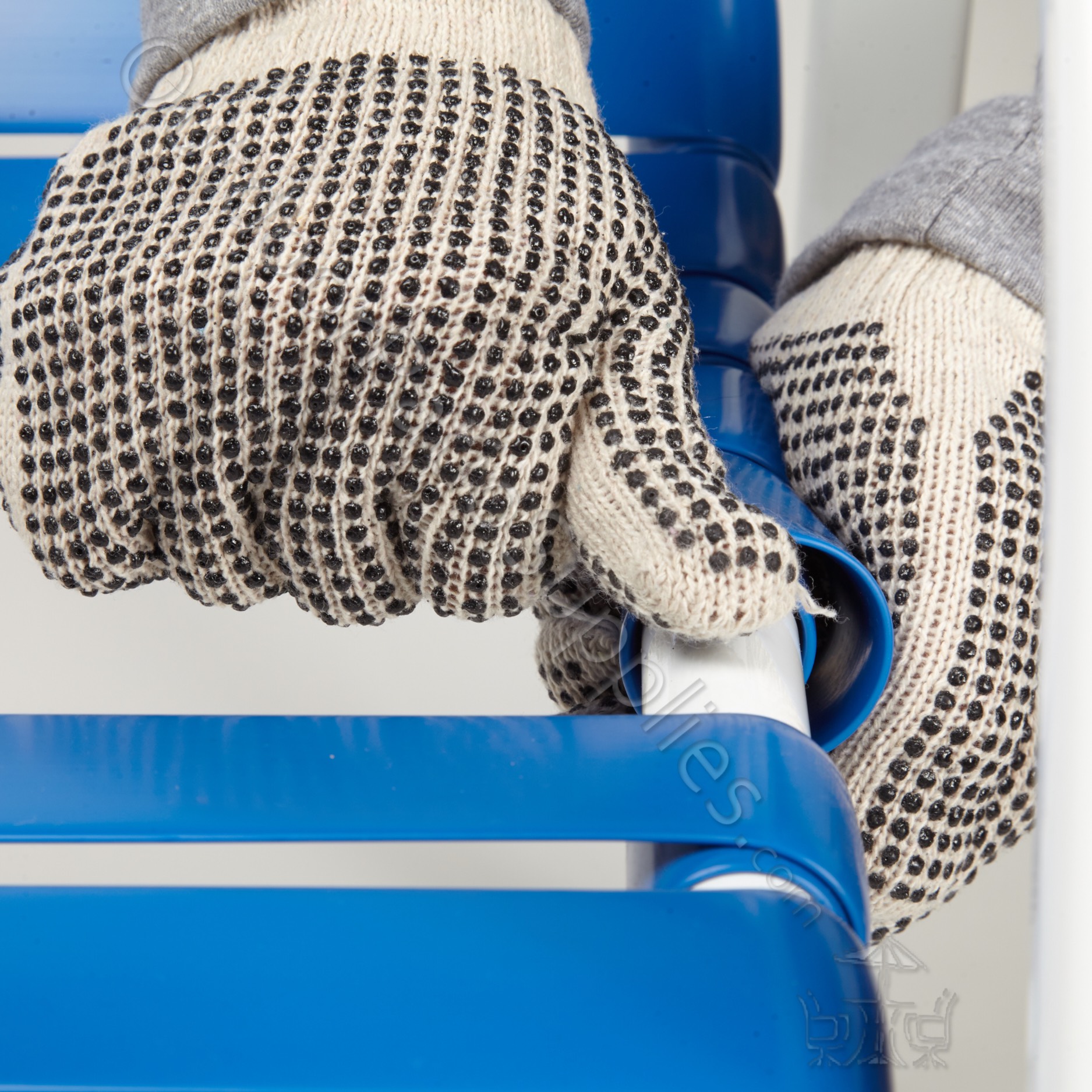

Stretch and pull the strap over the opposite side of the chair frame by 5” as shown in Pic. 4 and 5

how to install double wrap strap
how to install double wrap strap

Step four: Attach strap to the opposite side of the frame

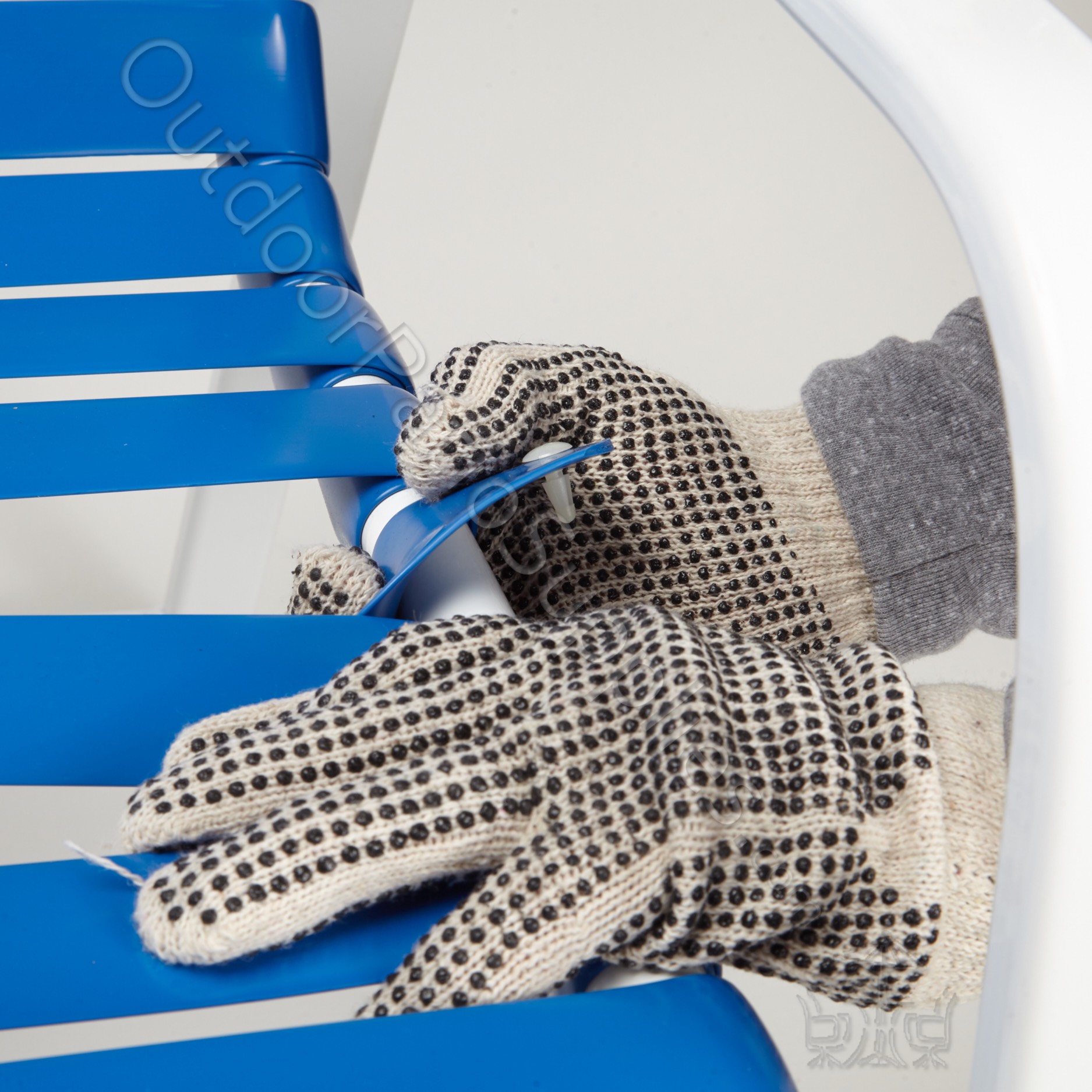

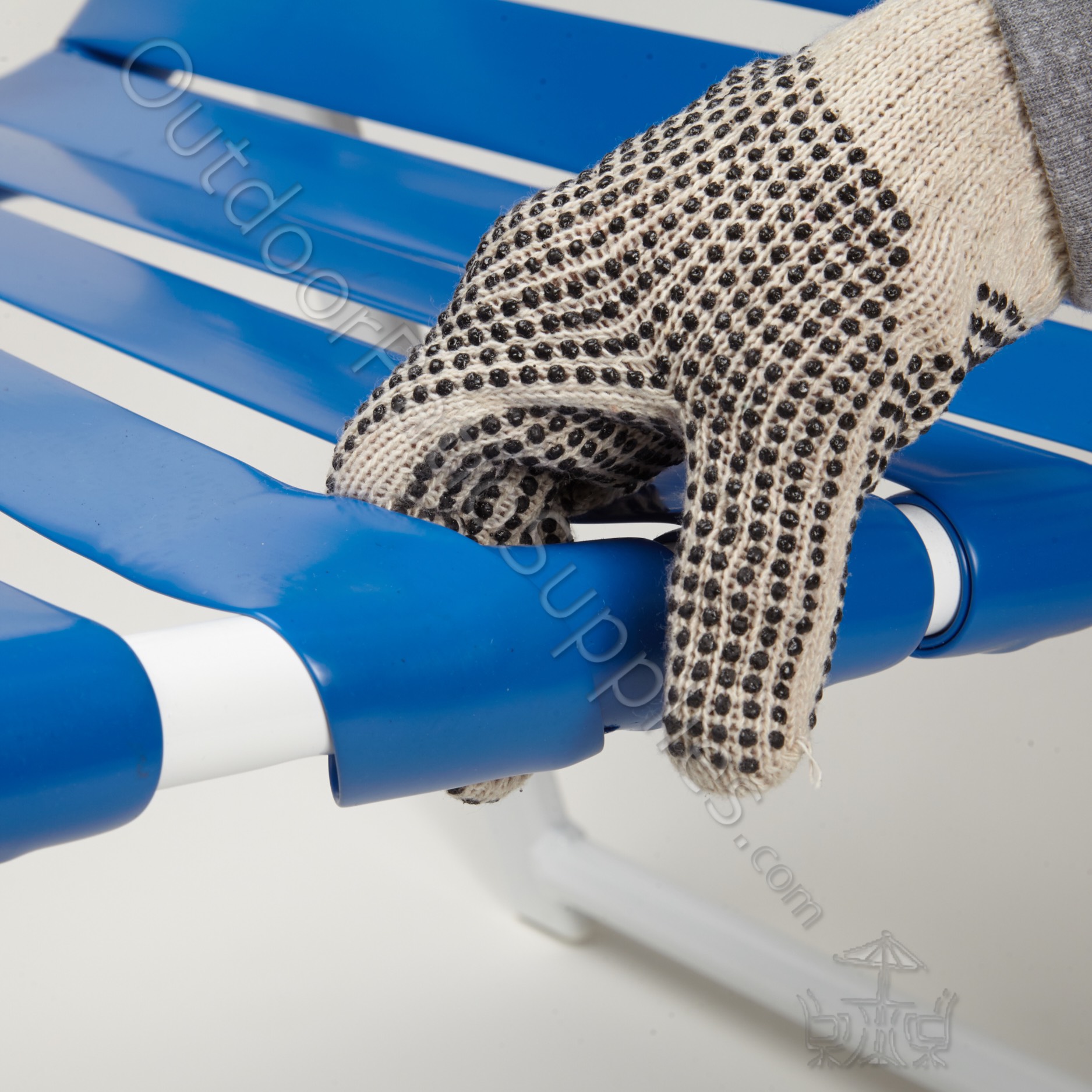

Wrap the strap around the frame twice (same as the 1st side) as shown in Pic. 6 and 7

how to install double wrap strap
how to install double wrap strap

Step five: Adjust strap

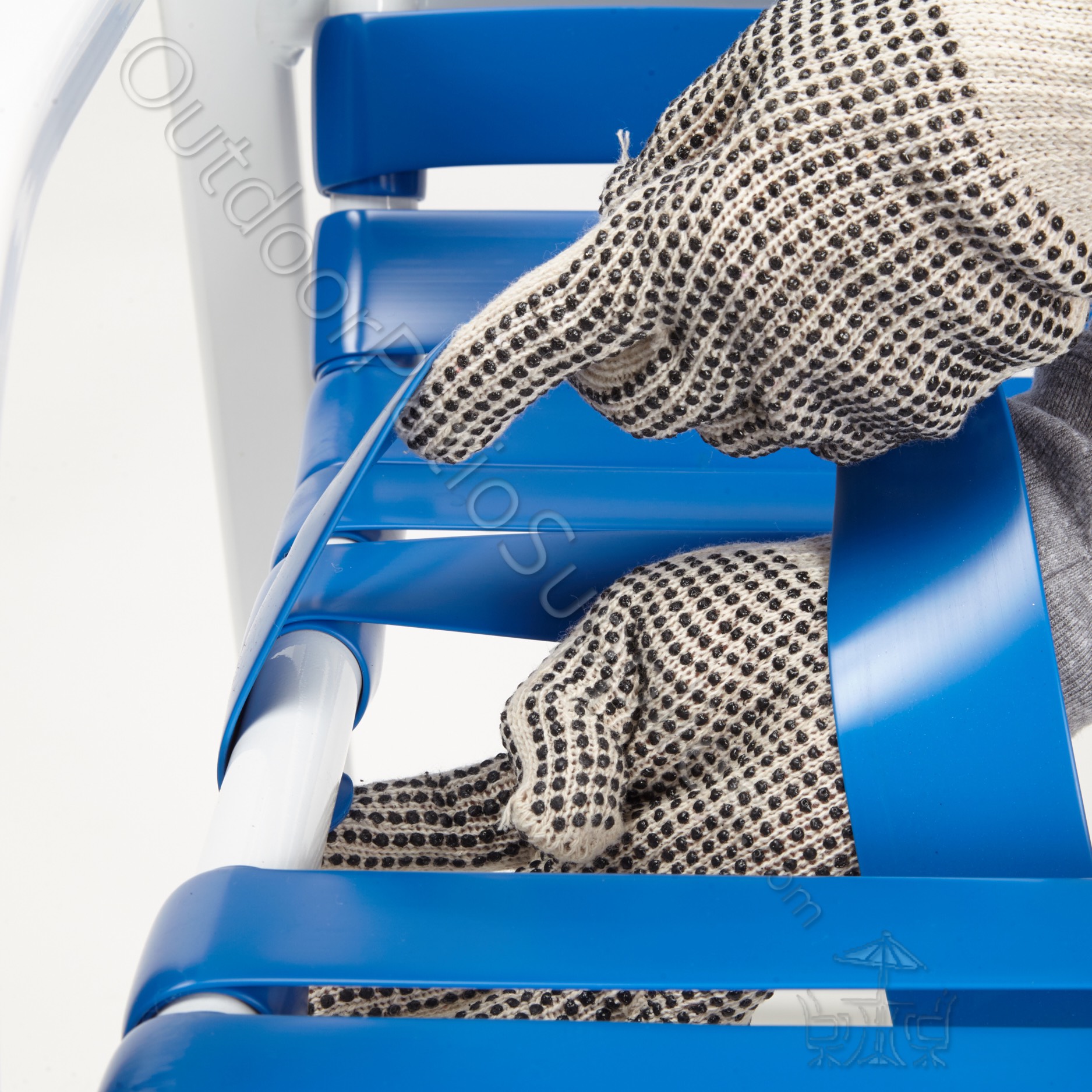

If necessary, slide and adjust the strap as shown in Pic. 8 and 9

how to install double wrap strap
how to install double wrap strap
